Akara Sky Hanuman, A New Perspective of Thai Culture in the Sky, combined with Void Acoustics Sound System

November 26, 2025

brand-logo

Akara Hospitality

Bar

Restaurant

Nightclub

Hospitality

blog-detail


Rising above Bangkok’s skyline at One City Centre (OCC), Akara Sky Hanuman redefines immersive entertainment by blending Thai cultural storytelling with cutting-edge audiovisual design. Combined with the Void Acoustics sound system by Aura Visual System.

Located across Floors 58, 59, and 61, this landmark destination is recognized as the world’s first and highest Thai sky experience, offering visitors a multi-sensory journey through Thailand’s past, present, and future—set against breathtaking panoramic city views.

To support this ambitious vision, Aura Visual System was entrusted with the complete design and installation of the venue’s audio system, deploying Void Acoustics throughout all three floors to deliver a cohesive, immersive, and emotionally engaging soundscape.

A Cultural Experience Elevated Above the City

Akara Sky Hanuman is conceived as more than a rooftop venue. The project embraces an immersive art concept, using sound, light, architecture, and interactive installations to tell uniquely Thai stories. Inspired by Hanuman, the legendary figure from the Ramakien epic, the venue invites visitors to explore cultural narratives through contemporary interpretation—while standing more than 200 meters above Bangkok.

The audio system plays a vital role in shaping this experience, ensuring that each zone carries its own identity while remaining sonically connected as a single journey.

Project Scope & Design Approach

Aura Visual System was responsible for the entire sound system across three floors, each with different architectural conditions, acoustic requirements, and operational needs. The project was a continuation of a long-standing relationship with the client, who entrusted Aura Visual System to deliver a solution that balanced:

  1. Immersive storytelling
  2. Architectural integration
  3. High-performance sound quality
  4. Operational flexibility across multiple zones

Floor 58 – Atmosphere, Art & Cultural Storytelling

Floor 58 serves as the entry point to Akara Sky Hanuman and introduces visitors to the immersive art narrative.

For general circulation and background music throughout the floor, Void Cirrus 6.1 ceiling loudspeakers were deployed extensively, providing even, unobtrusive coverage along walkways and exhibition areas.

Siam Society

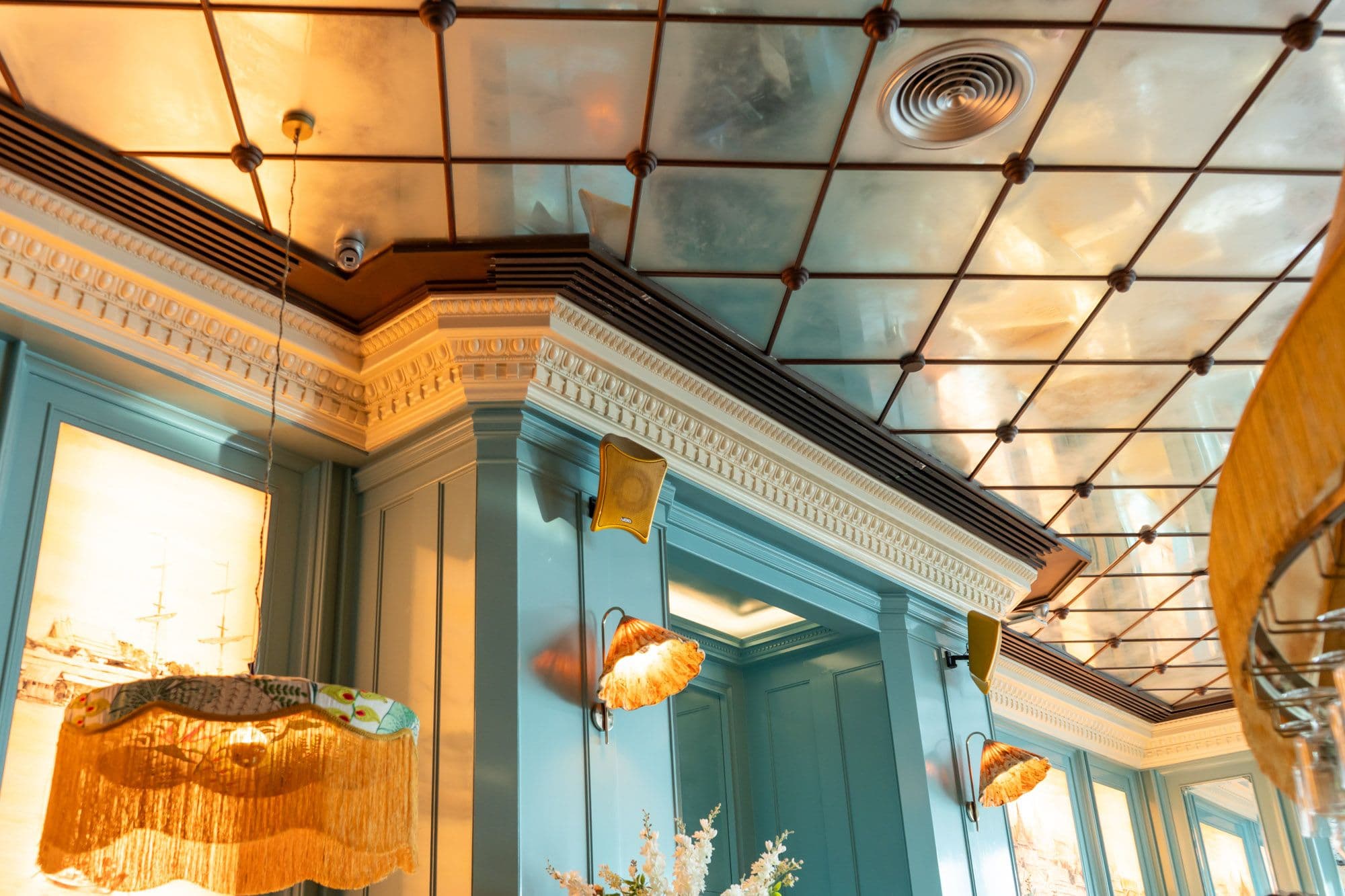

One of the key spaces on this floor is Siam Society, a refined lounge designed for afternoon tea during the day and live music experiences in the evening. The mood transitions seamlessly from jazz bar ambience to live jam sessions featuring Thai instruments, piano, and DJ performances.

  1. Void Air 8 loudspeakers deliver clear, musical mid-high definition
  2. Void Venu 115 V2 subwoofer adds warmth and low-end presence

The sound system was tuned to complement the space’s visual identity—traditional Thai mural-inspired artwork blended with modern design elements.

Siam Society

Bangkok Reflection & Virtual Sky Lantern

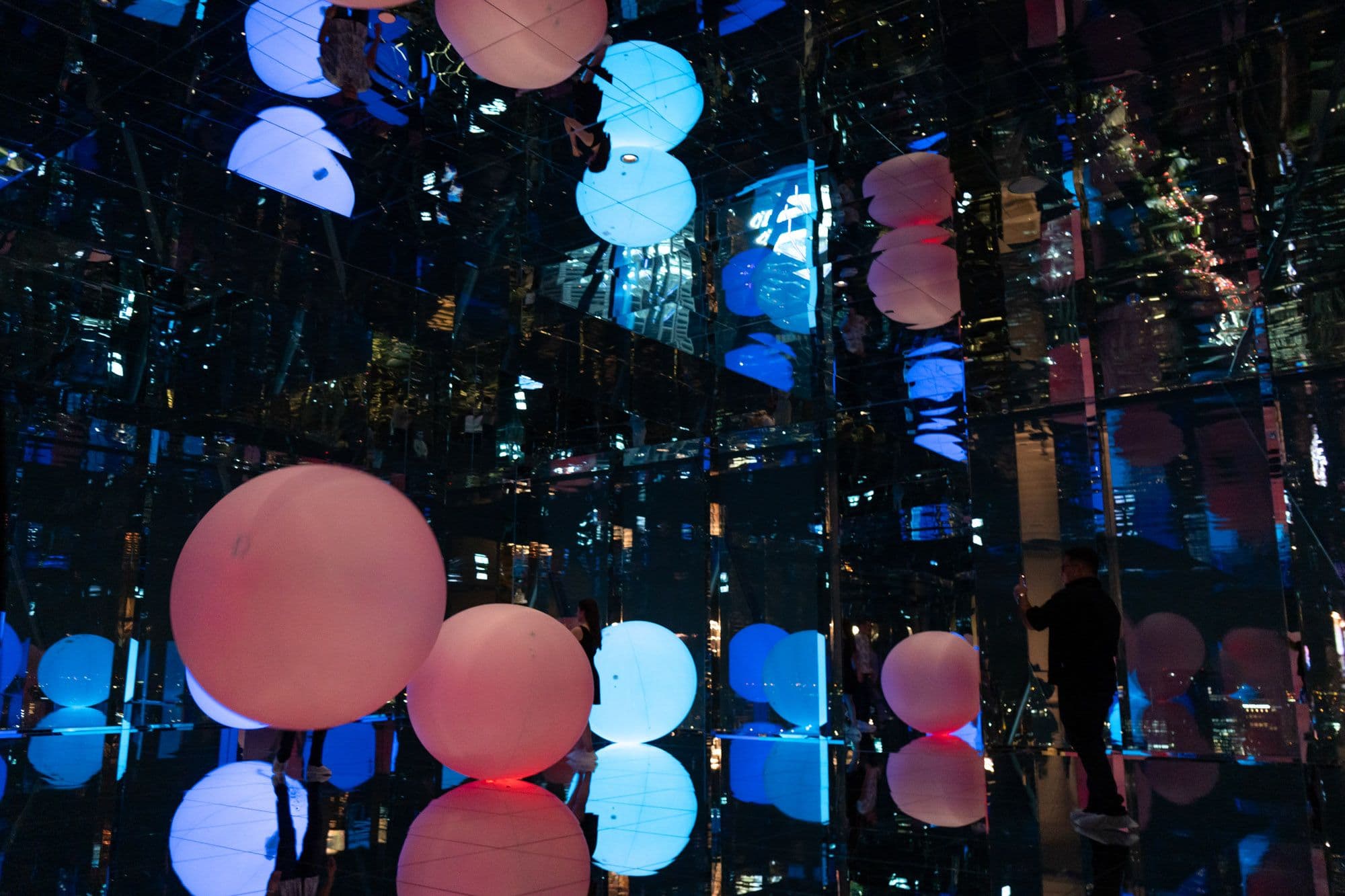

Also spanning Floors 58 and 59 is Bangkok Reflection, an immersive mirrored environment that plays with light, reflection, and panoramic city views, including vistas of the Chao Phraya River. Here again, Cirrus 6.1 loudspeakers provide ambient sound while being custom-finished to visually blend with glass surfaces and interior materials.

Bangkok Reflection

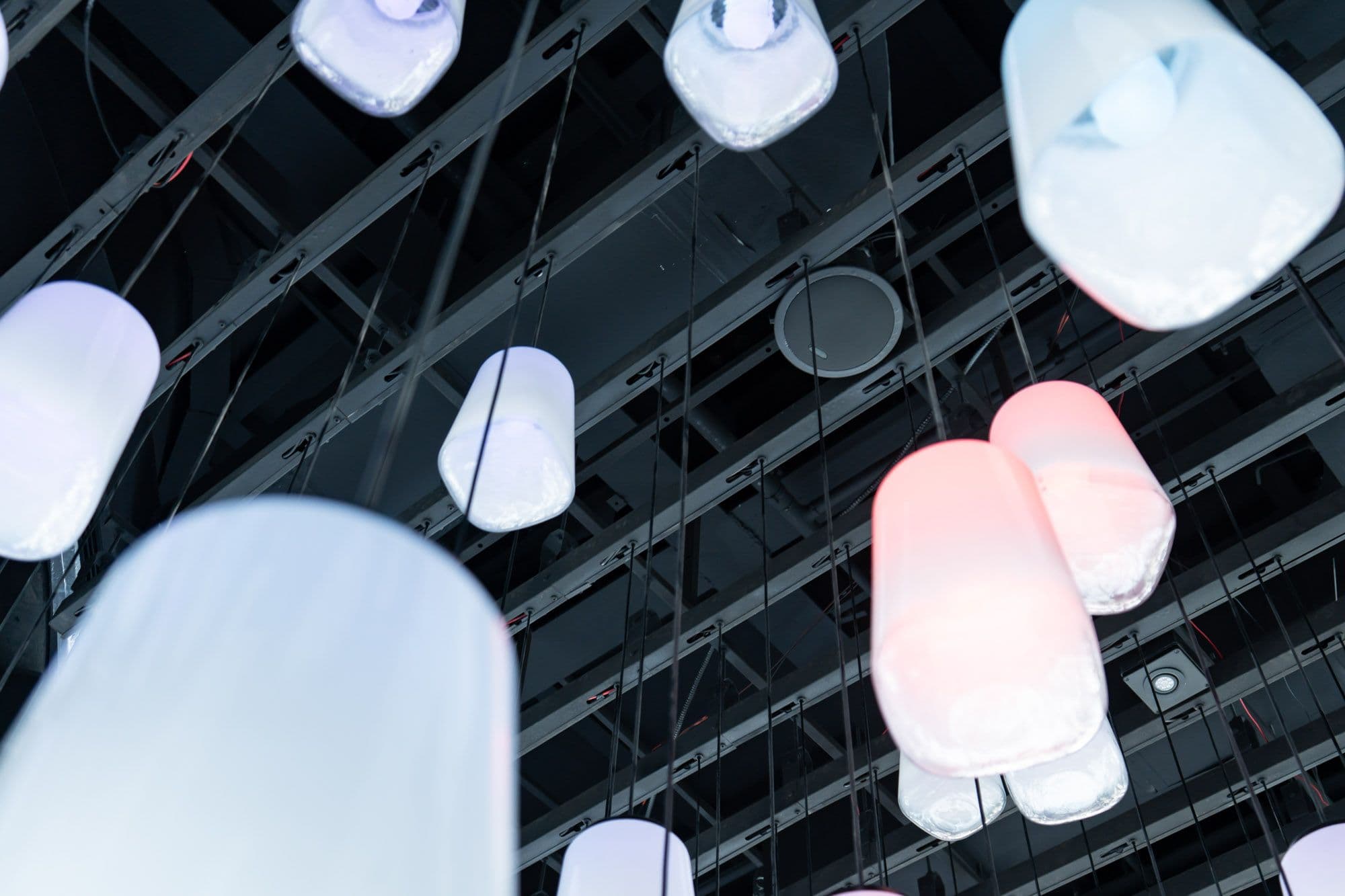

On Floor 58, the Virtual Sky Lantern zone evokes Northern Thai traditions, using audio as an atmospheric layer that enhances the visual storytelling.

Hanuman Cinema

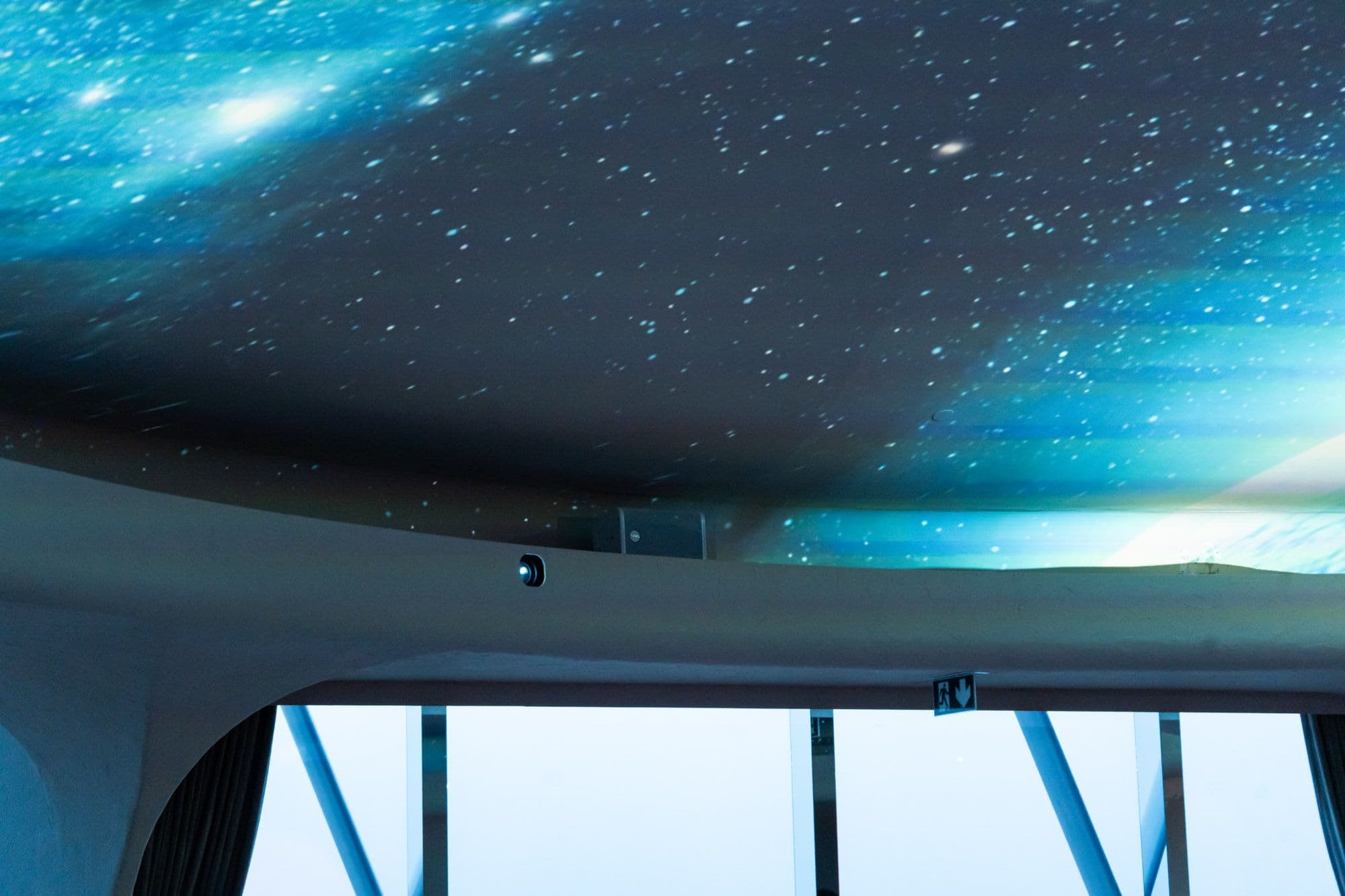

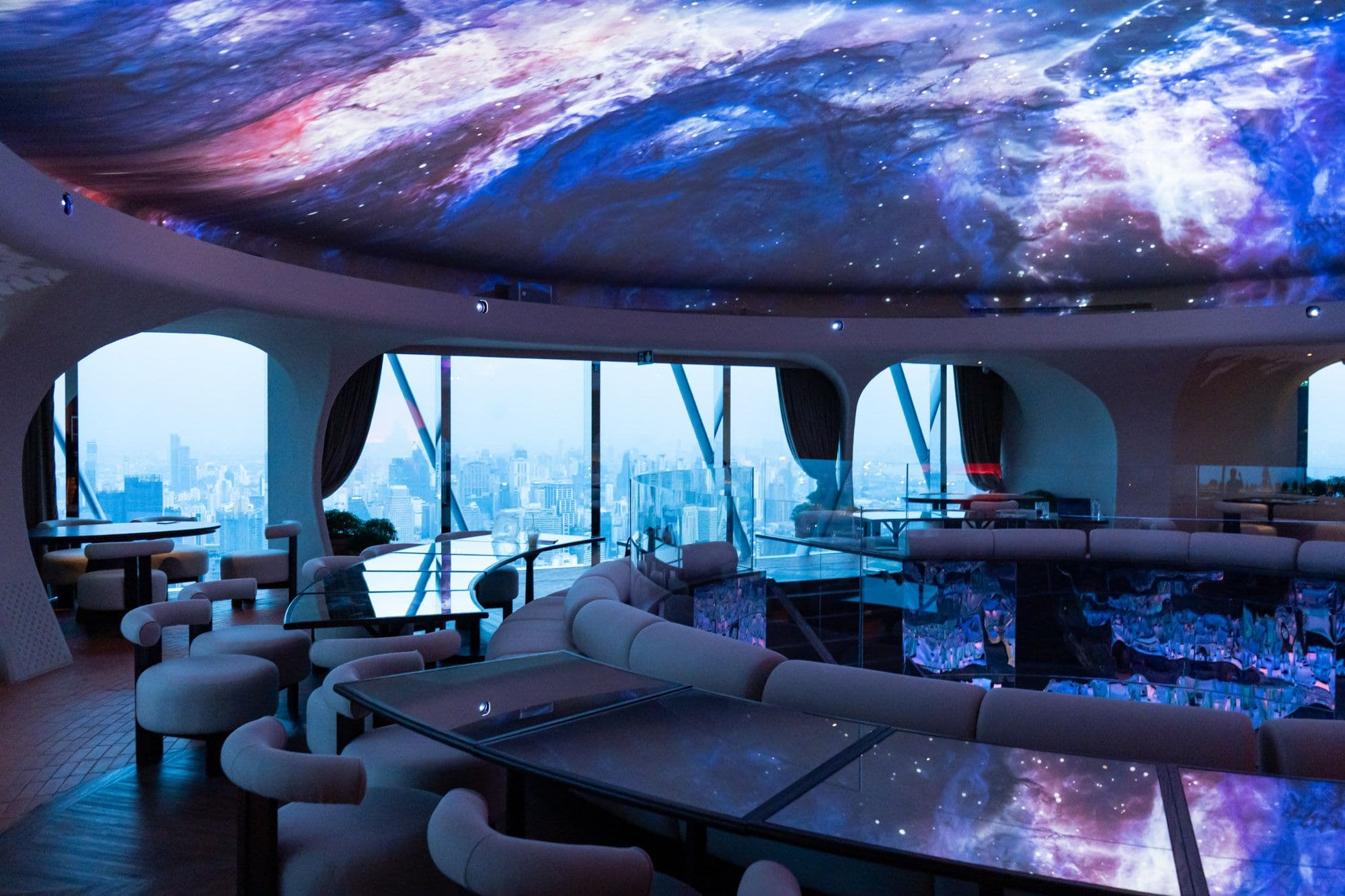

Just a few steps up from the 58th floor, you'll find Hanuman Cinema. Experience the Taste of Thailand, a curated dining journey across four regions, presented through the signature Thailand Flavor Map. Also enjoy a short film on Hanuman and the cycle of life under the sky dome, paired with an immersive sound system by Void Acoustics Venu 8.

Hanuman Cinema

Floor 59 – Interactive Thai Traditions

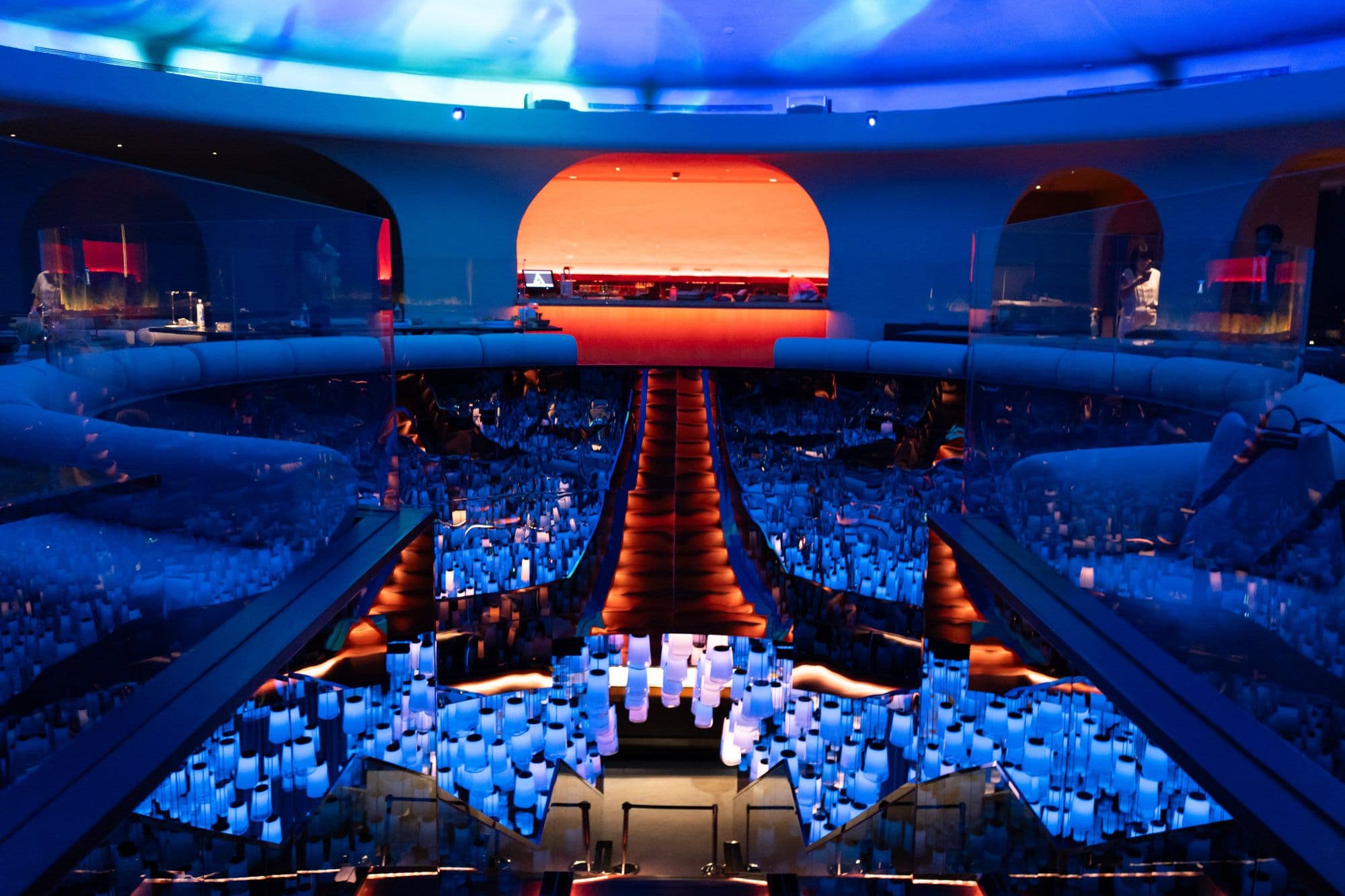

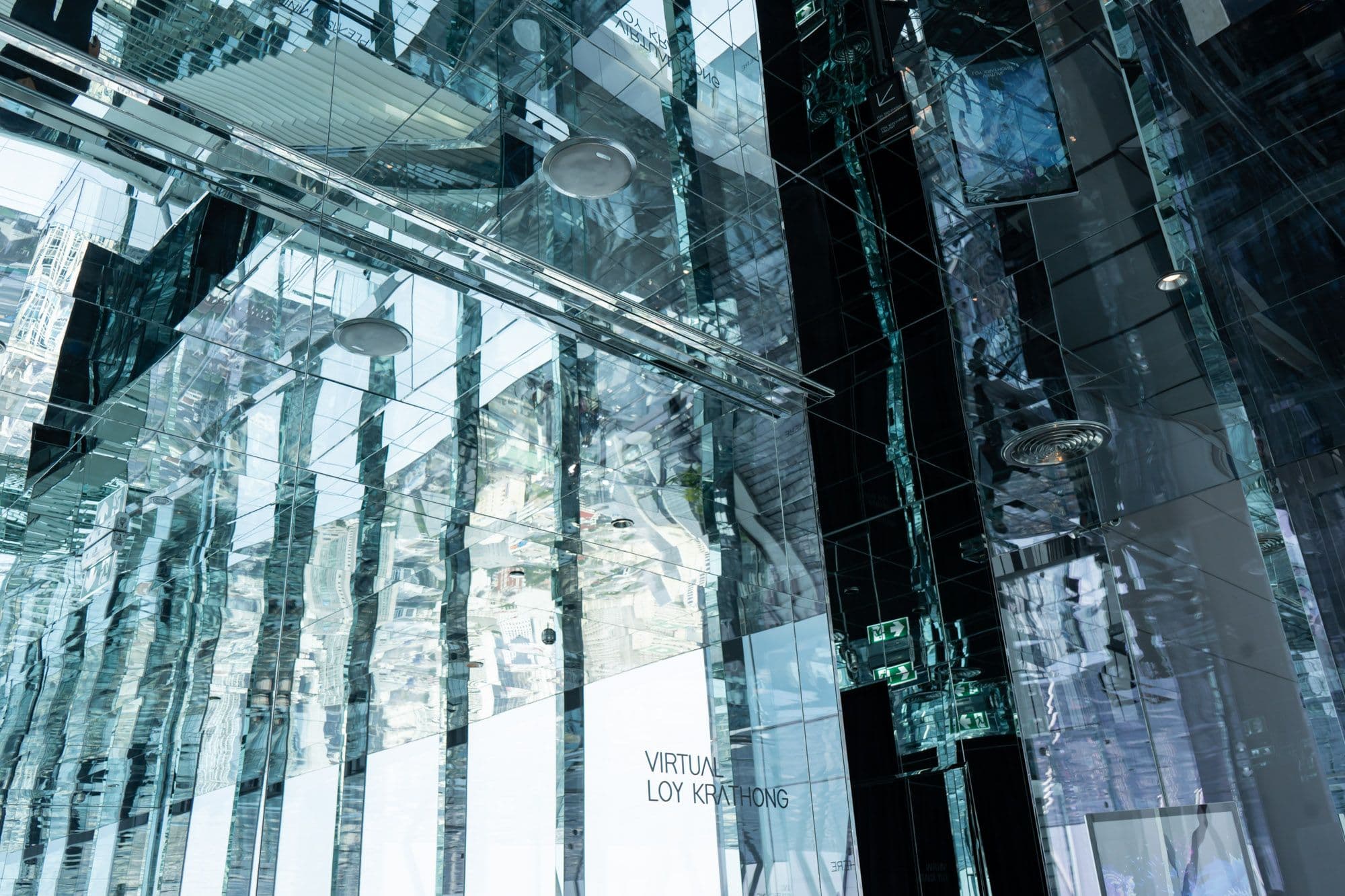

Floor 59 continues the immersive journey with Virtual Loy Krathong, an interactive installation that reimagines one of Thailand’s most cherished festivals. Visitors design their own digital krathongs, which are scanned and animated to float within the immersive environment.

This floor combines Void Venu 8 V2, Venu 112 V2, and Cirrus 6.1 loudspeakers to balance clarity, immersion, and spatial depth—ensuring sound supports interactivity without overpowering the experience.

Virtual Loy Krathong

Floor 61 – Rooftop Icon & Sonic Statement

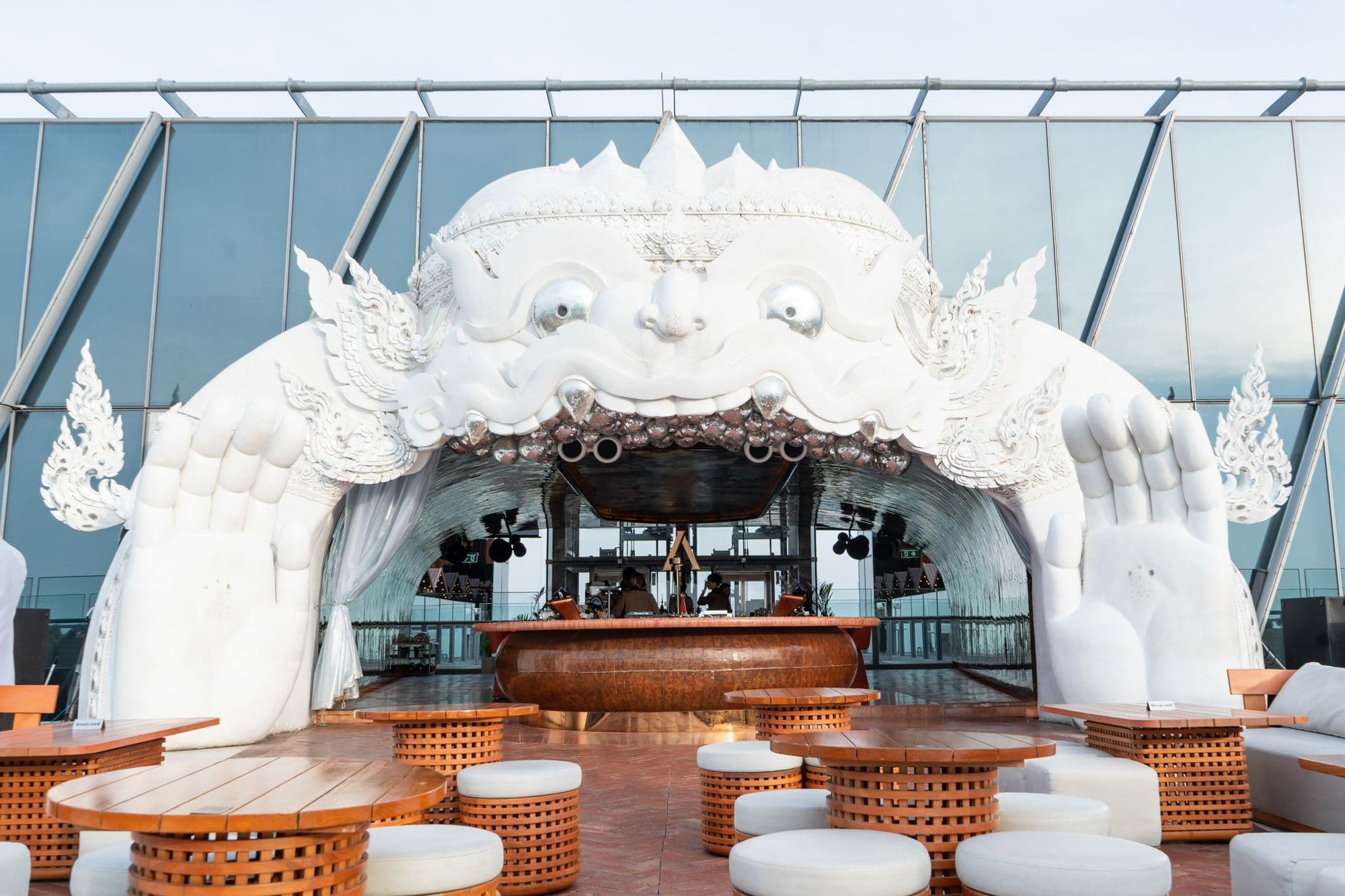

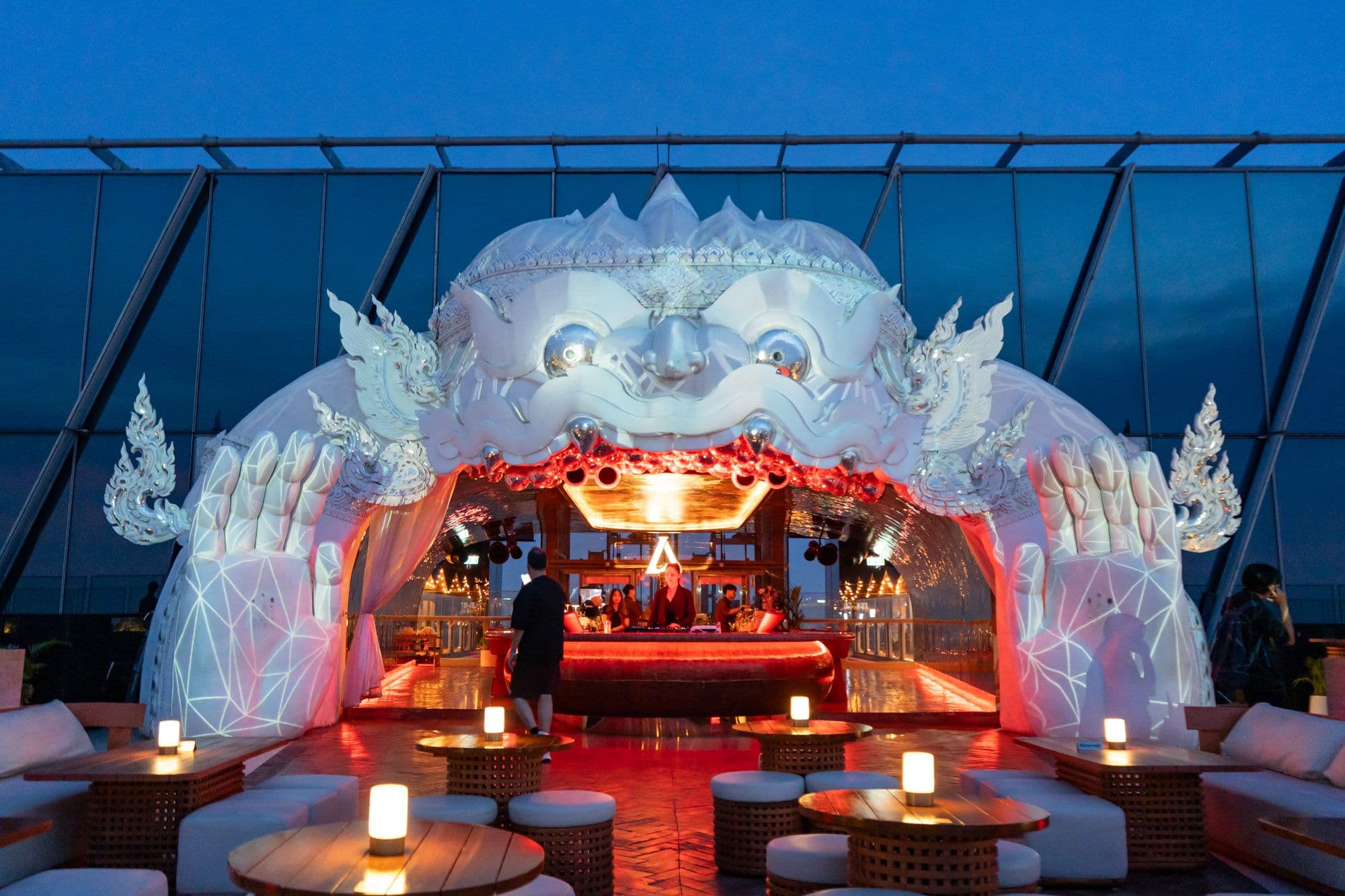

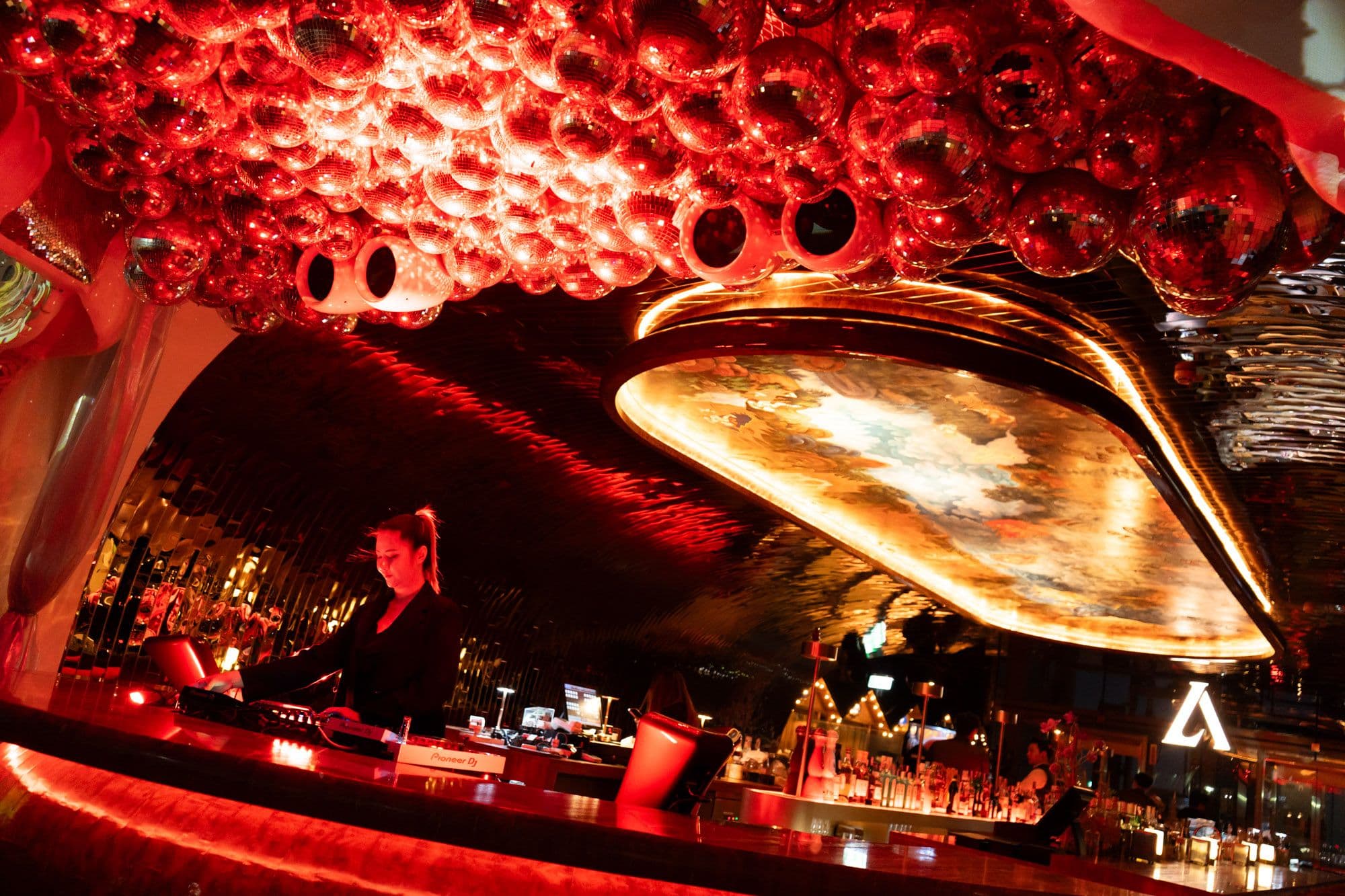

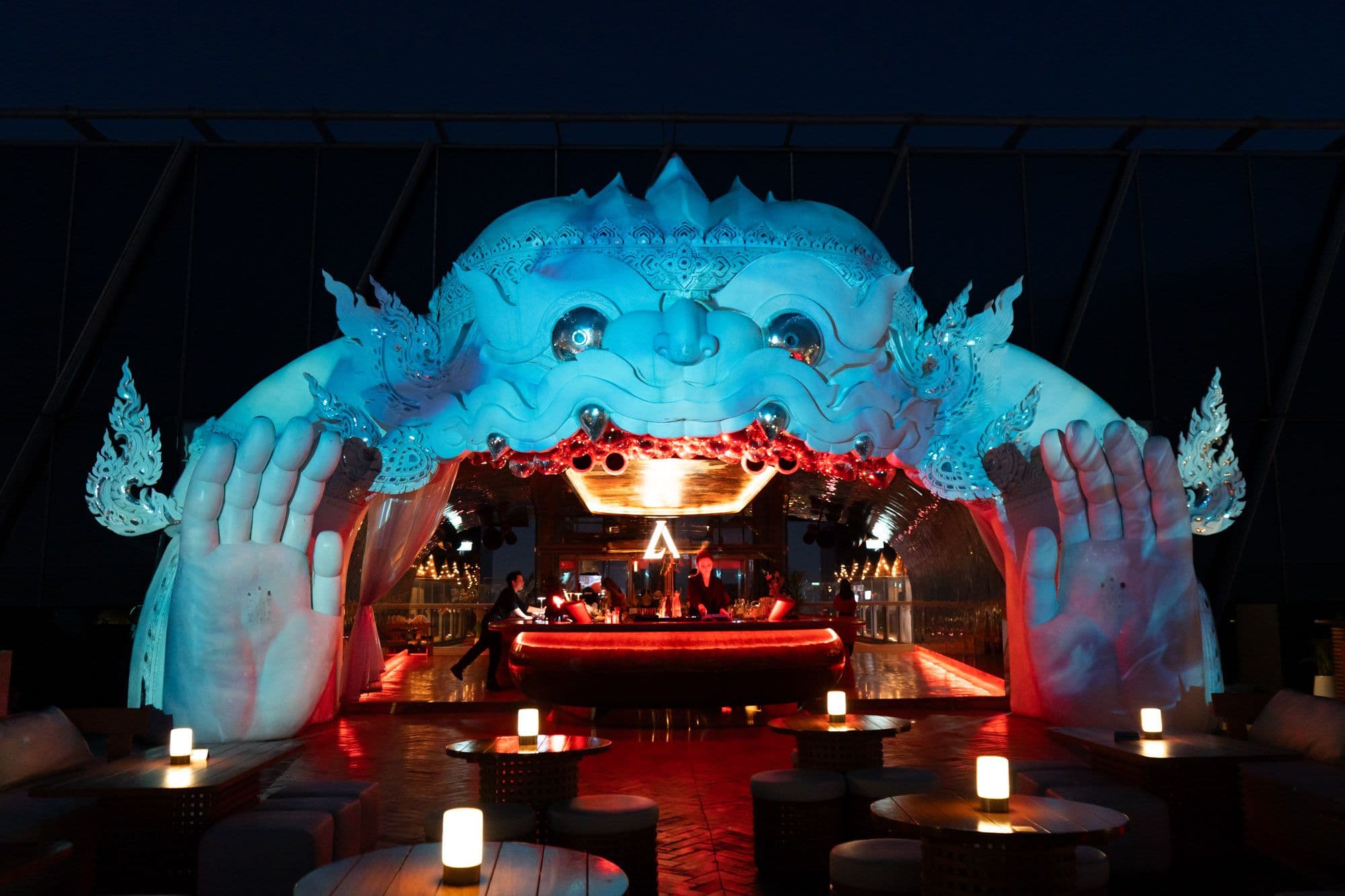

The highlight of Akara Sky Hanuman is Floor 61, the rooftop destination crowned by a monumental Hanuman sculpture—a striking visual icon visible as guests emerge from the elevators.

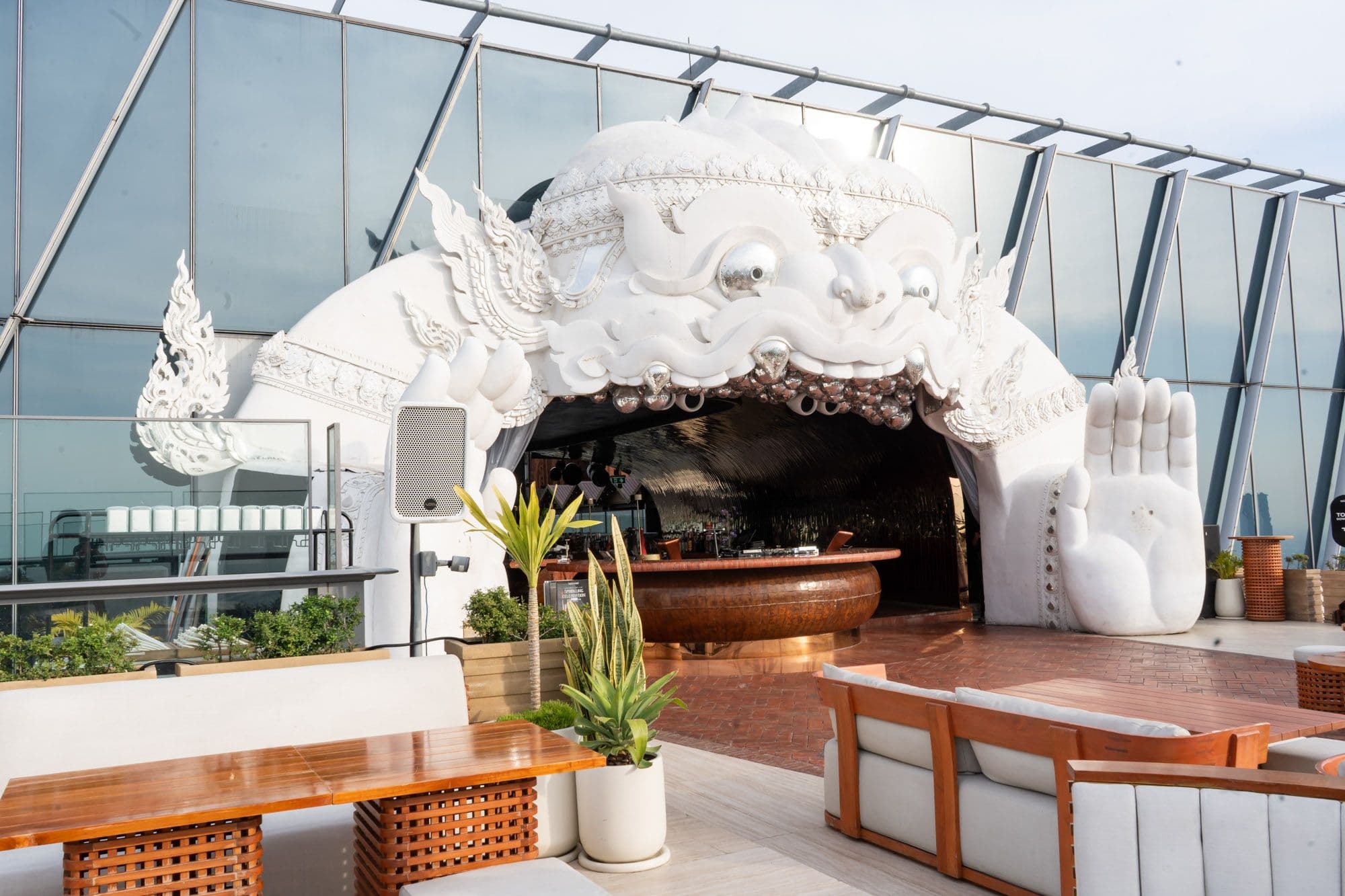

Upon arrival, visitors are greeted by Void Air Motion V2 loudspeakers, custom-finished in a copper tone to blend seamlessly with the tunnel-like architectural transition. As guests move through the “mouth of Hanuman” into the open rooftop, the system transitions to a more powerful, performance-oriented configuration.

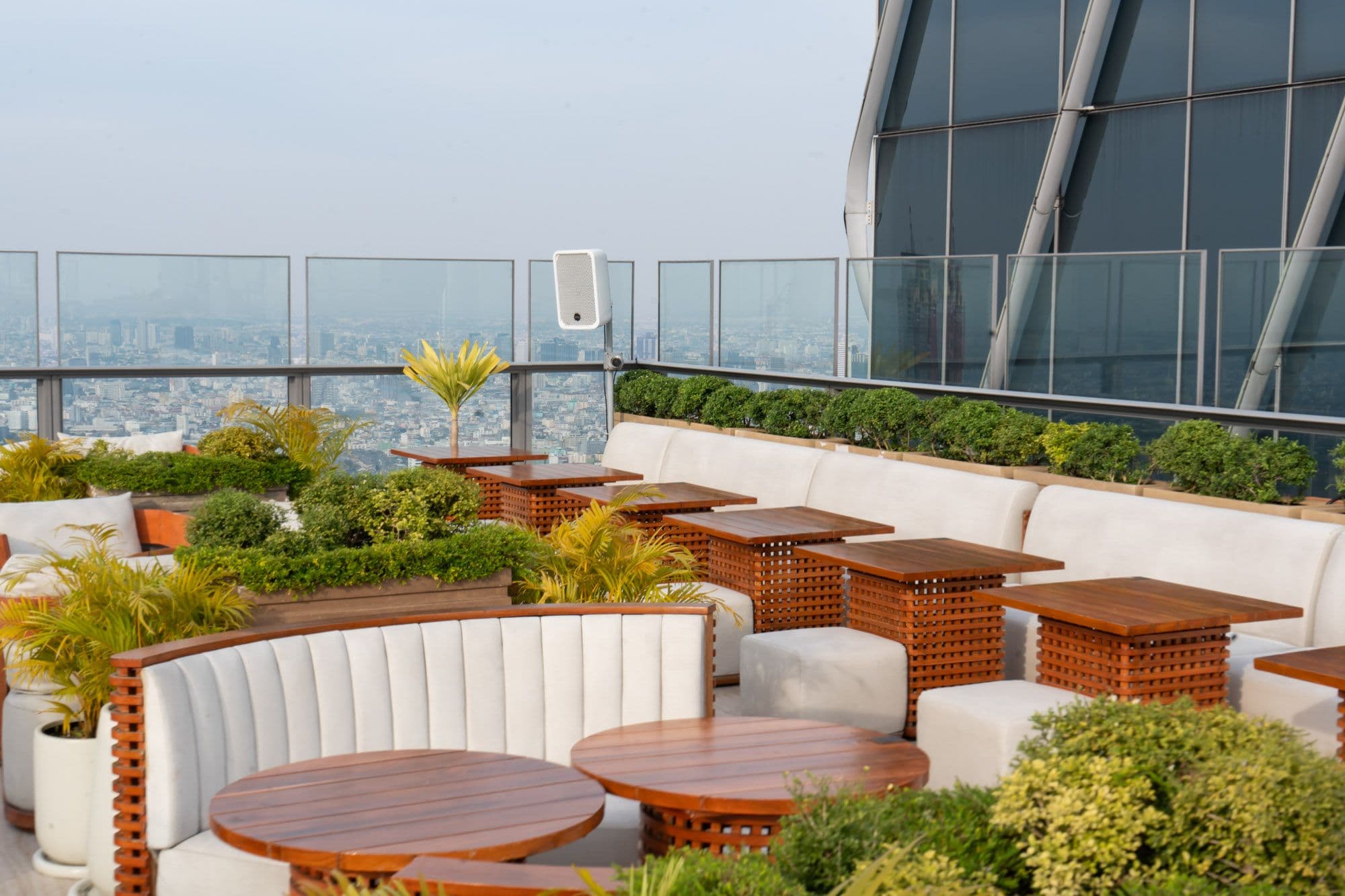

  1. Void Airten V3 loudspeakers cover the main rooftop area

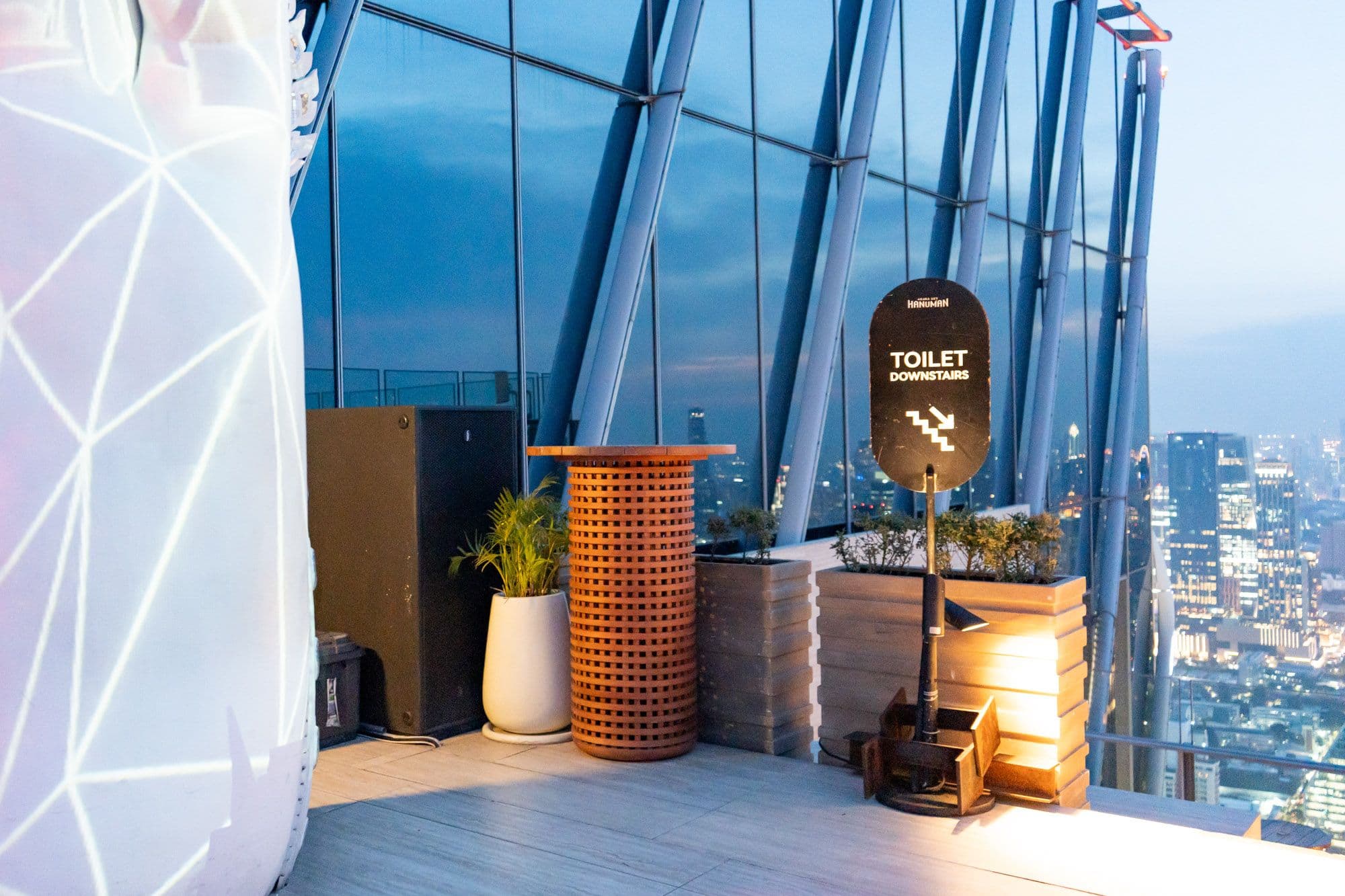

  2. Stasys XV2 subwoofers deliver deep, controlled low-frequency impact
  3. Cyclone 10 and Cyclone 4 provide weather-resistant delay and fill coverage across outdoor zones
  4. Cyclone Bass units reinforce low-end energy throughout

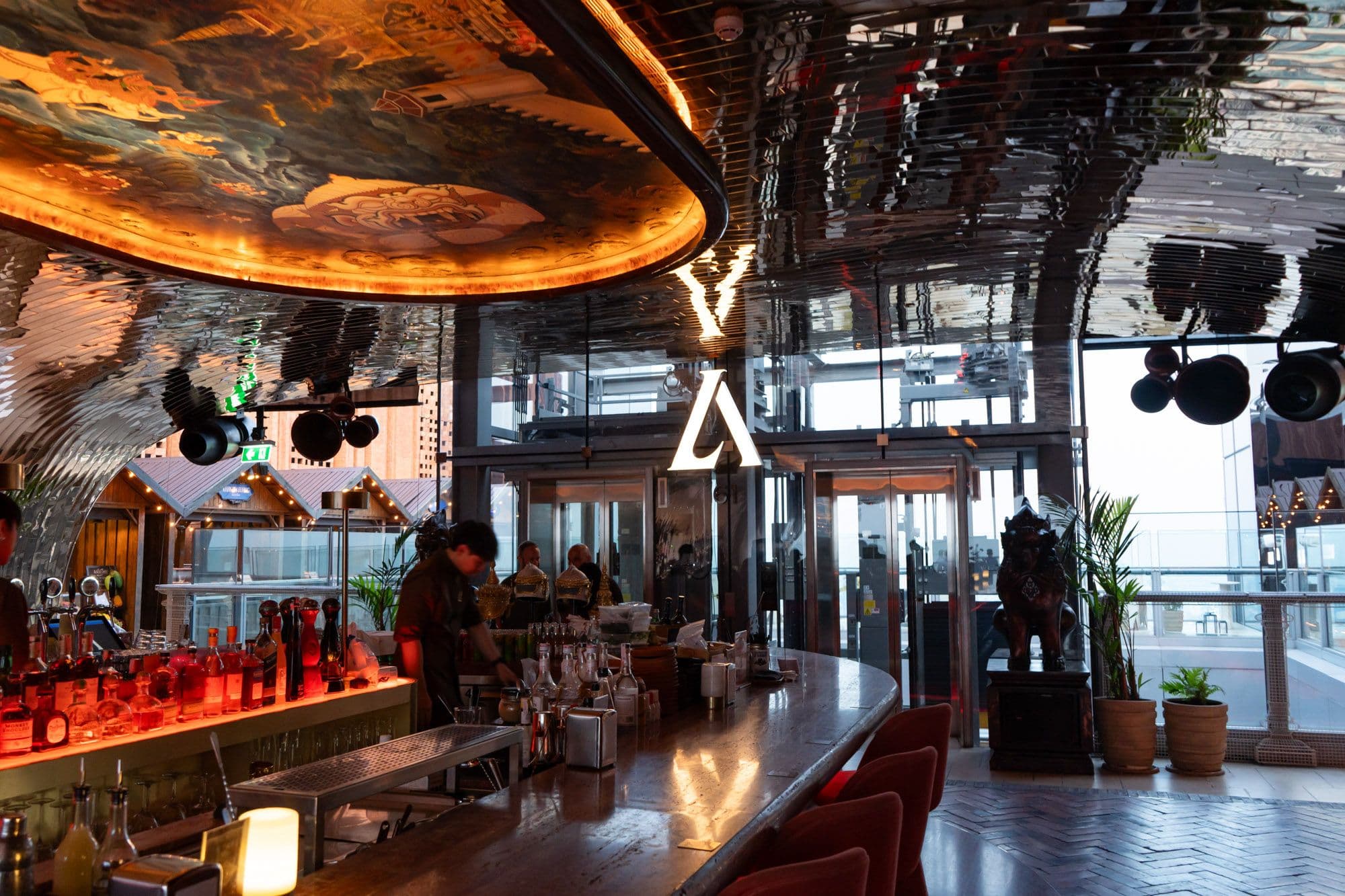

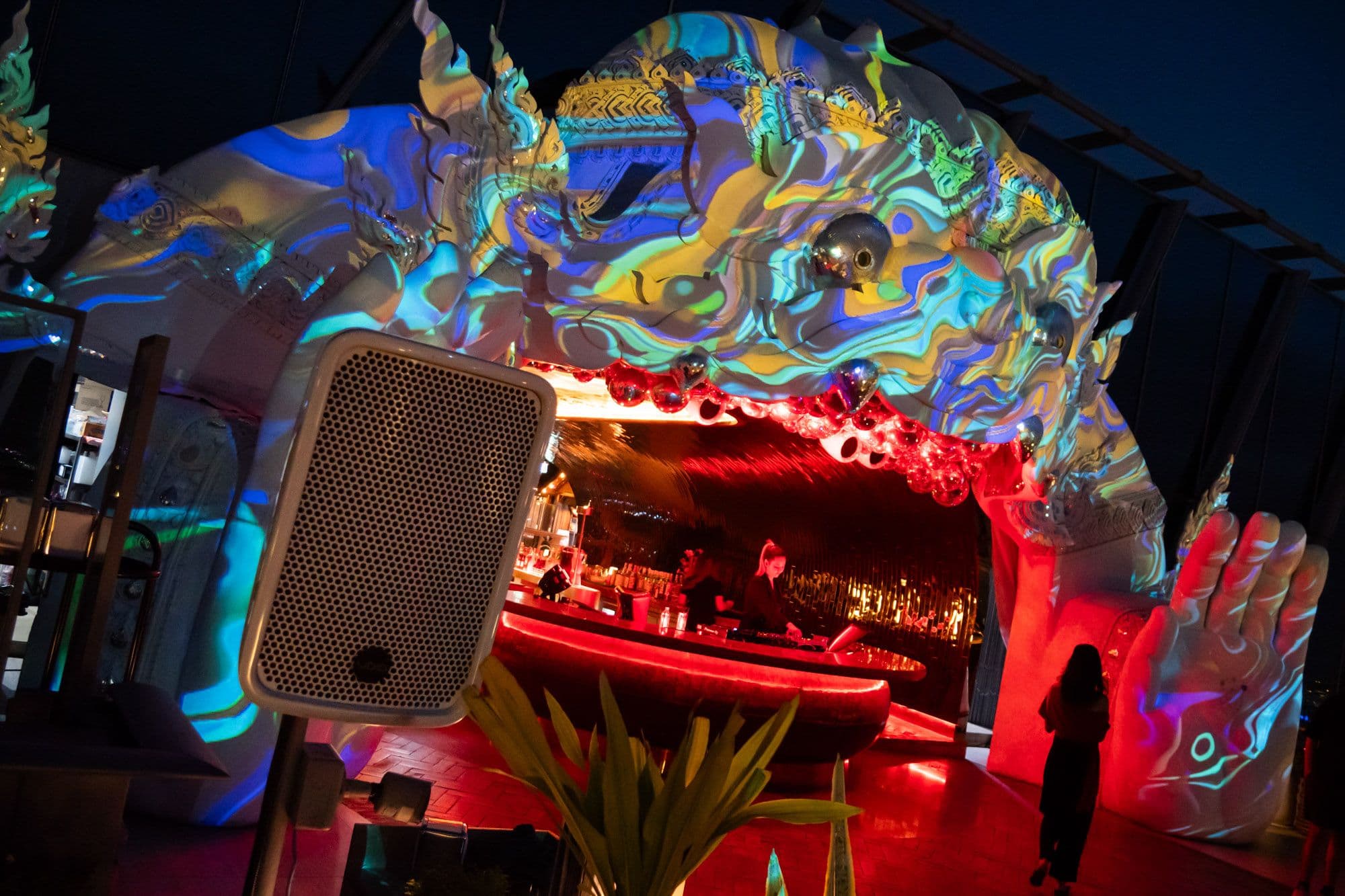

The rooftop also features a DJ performance area, supported by Void Air 8 monitors, custom-colored to match the copper aesthetic of the Air Motion units.

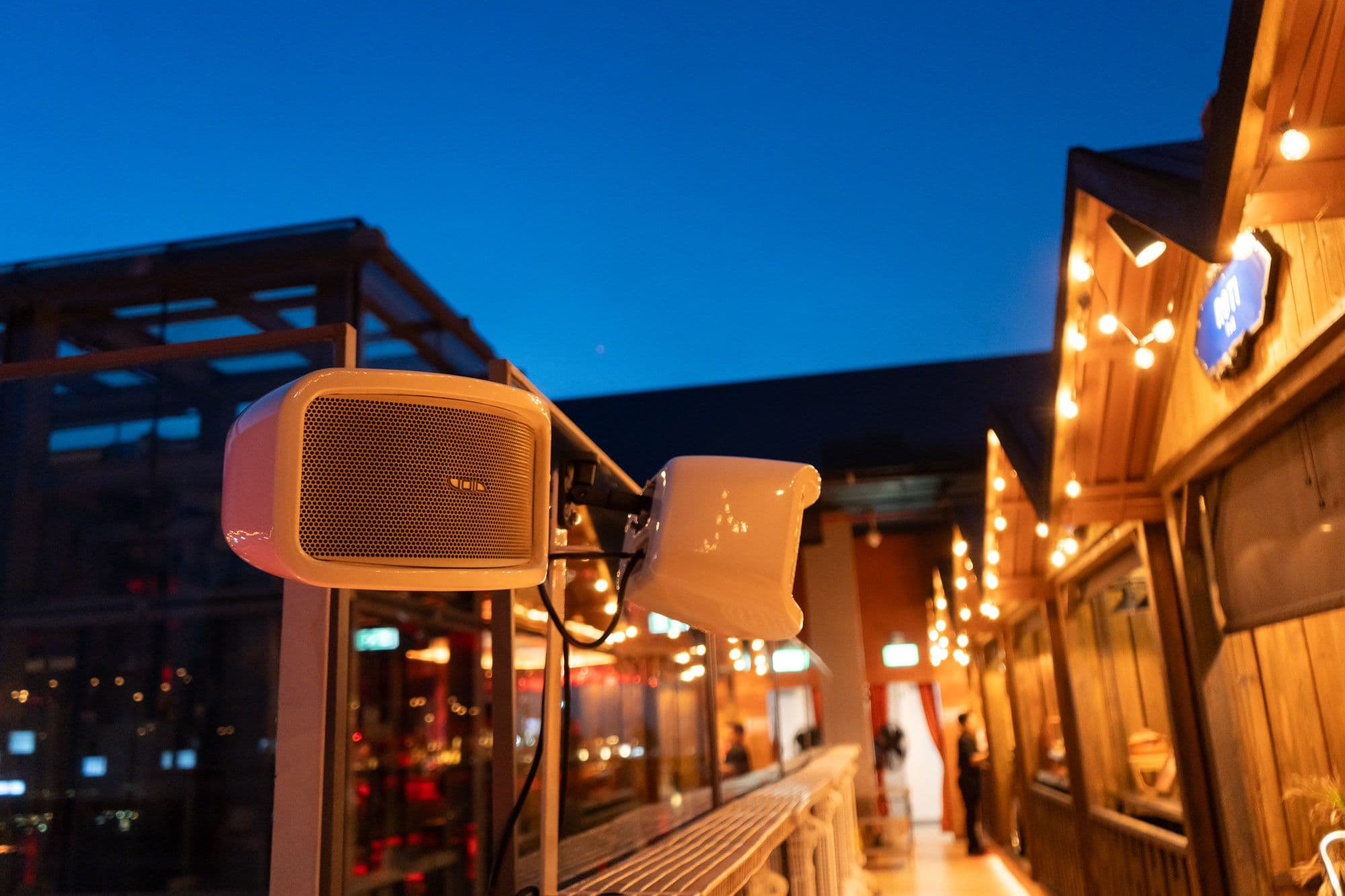

At the far end of the rooftop, Sky Thai Night Market completes the experience, with Cyclone 55 loudspeakers providing durable, IP-rated background-to-foreground sound suitable for outdoor conditions.


Backbone System & Control

Given the complexity of the venue—with multiple floors, zones, and operational modes—system control and flexibility were critical.

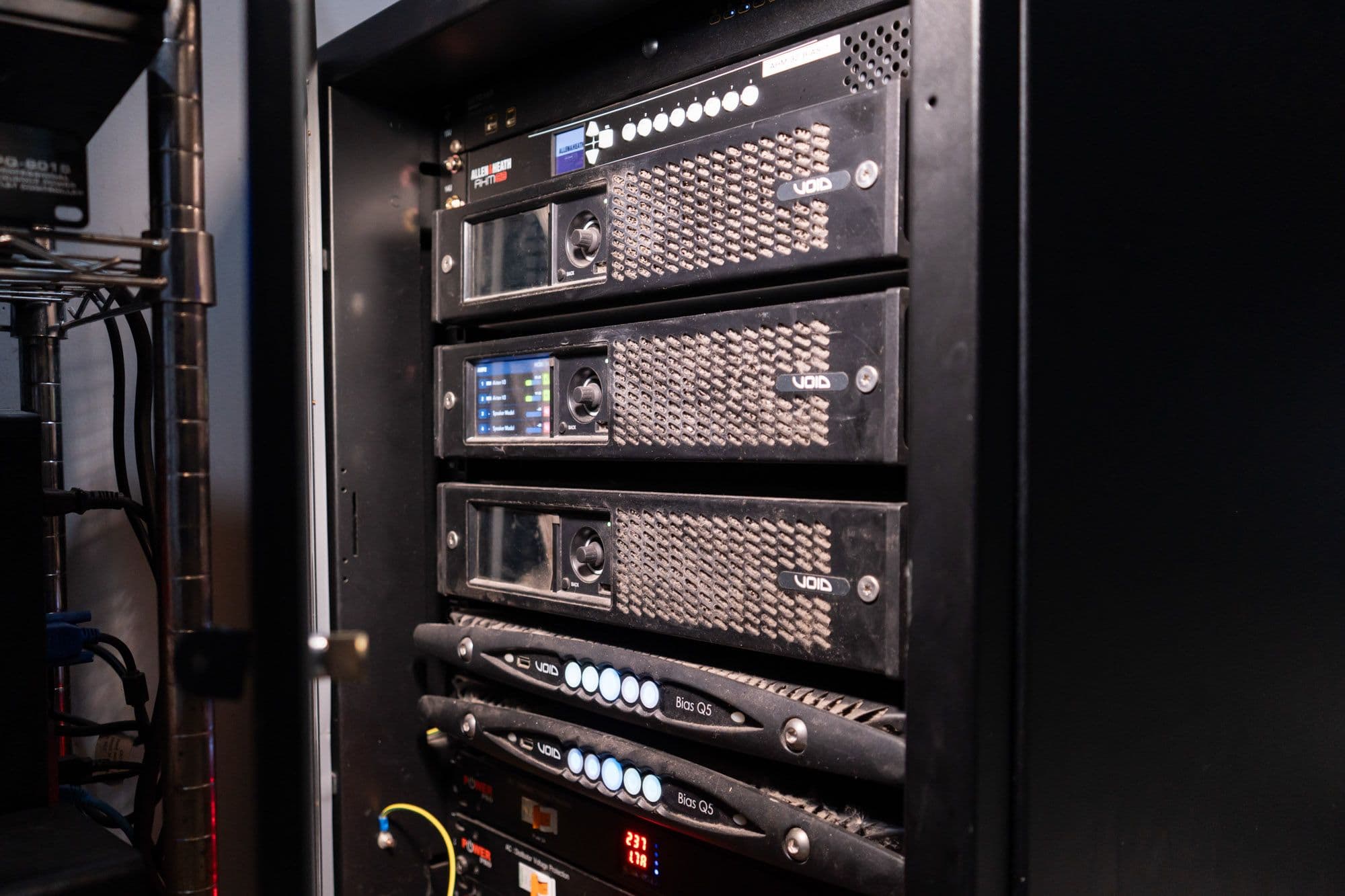

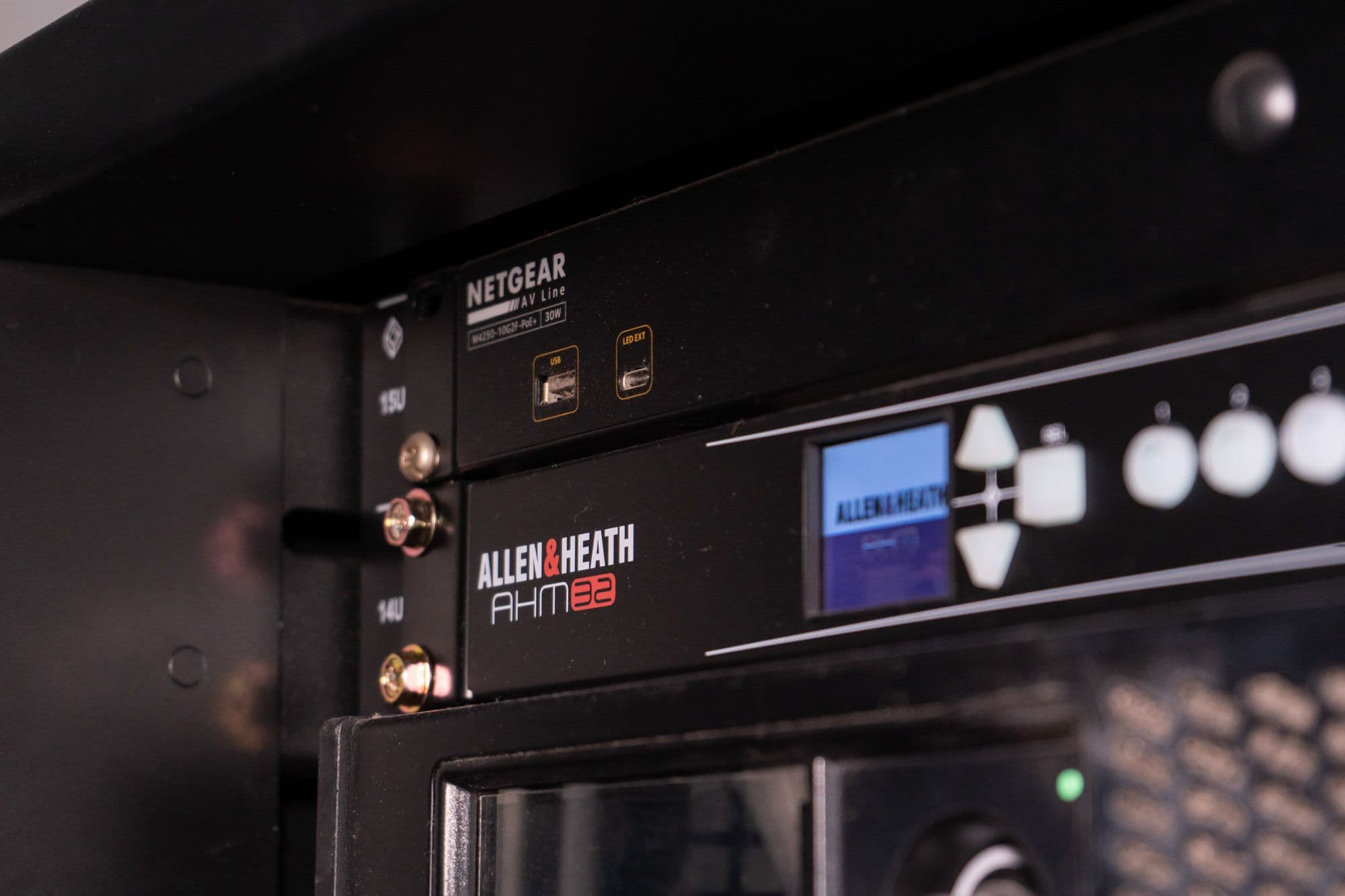

Aura Visual System designed the backbone around Allen & Heath AHM processors, ensuring reliable zone management and precise signal processing. The system is complemented by:

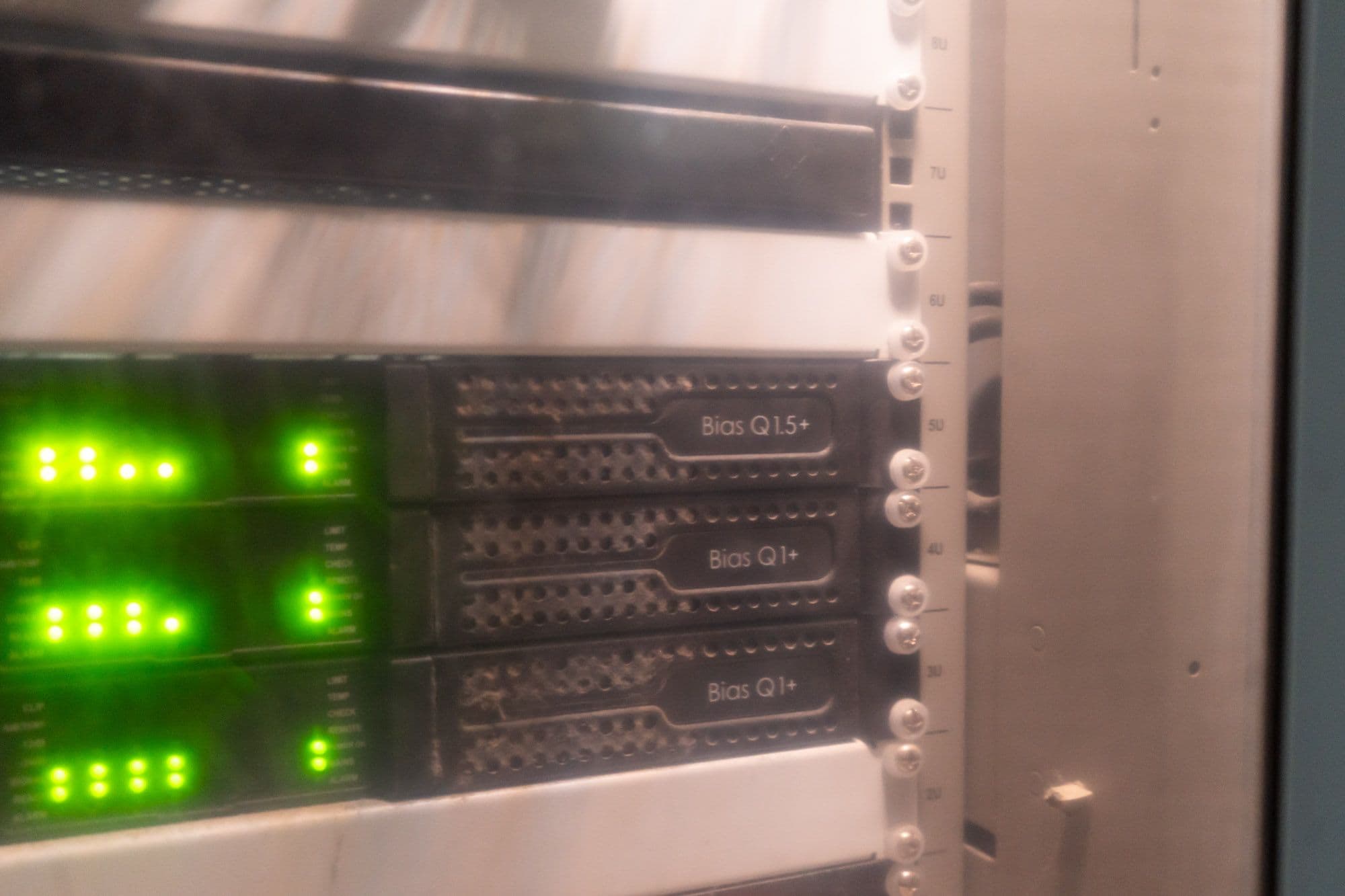

  1. Void Bias series amplifiers throughout

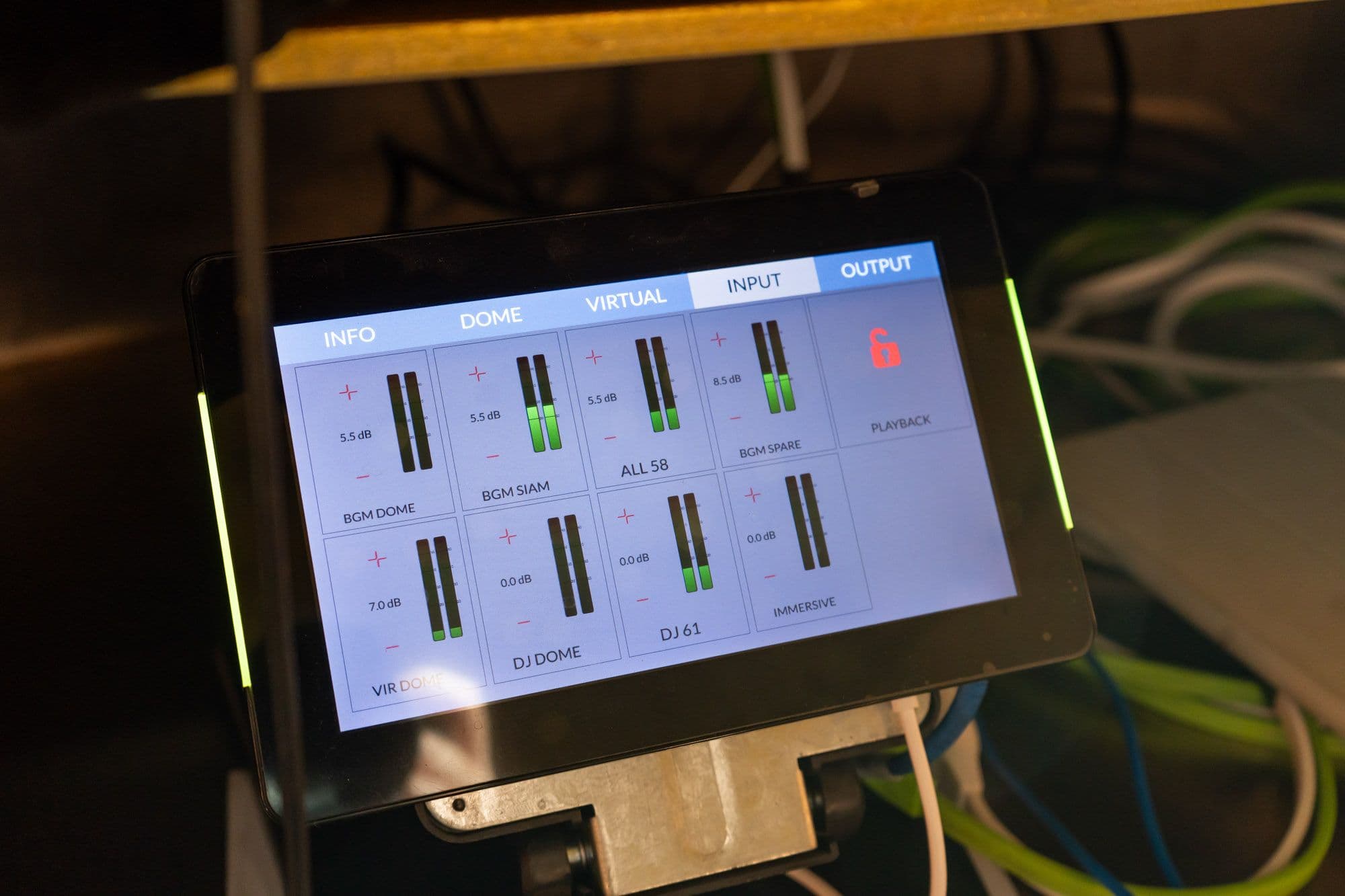

  2. CC-7 wall controllers for intuitive local control
  3. Wireless iPad control, allowing staff to adjust sound levels and zones in real time while moving through the venue

This approach ensures ease of operation while maintaining professional-grade audio performance.

Conclusion

Akara Sky Hanuman stands as a bold fusion of Thai heritage and modern experiential design—elevated literally and conceptually above the city. Through the integration of Void Acoustics and the system expertise of Aura Visual System, sound becomes a storytelling tool that enhances emotion, atmosphere, and cultural immersion.

From subtle ambient soundscapes to powerful rooftop performances, the audio system adapts seamlessly to every moment—supporting Akara Sky Hanuman’s identity as a truly world-first Thai sky experience.
